PowerMap Meter

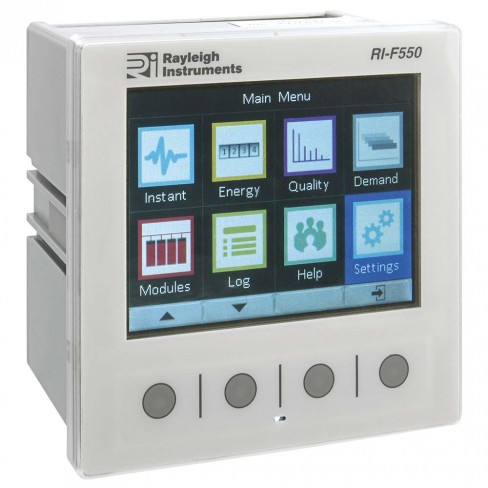

The PowerMap Meter system is an advanced DIN 96 panel mounted multifunction meter with power analyser functions, developed in partnership with Rayleigh Connect. It is ideal for electrical parameter measurement and power quality analysis. The RI-F550 Series, known as PowerMap, represents a cutting-edge DIN 96 panel mounted multifunction meter with robust power analyzer capabilities. It offers precise electrical parameter measurement and in-depth power quality analysis for a wide range of applications. The meter boasts a vivid full-color graphical display, ensuring clear visibility even in challenging lighting conditions. Quick select 'touch' buttons on the meter's front panel allow users swift access to the required display pages.

PowerMap is equipped with essential inputs and outputs, including RS485 Modbus, energy pulse output, AC digital inputs, relay outputs, and neutral current transformer input. Moreover, it accommodates additional plug-in modules to enhance its functionality and seamlessly integrate with smart electricity distribution systems and energy management solutions. Versatile in application, PowerMap can be employed in both single and three-phase balanced or unbalanced load systems, catering to various operational needs. PowerMap by Watford Control empowers you to analyze, monitor, and optimize power consumption and quality with precision and efficiency.


  • DIN 96 panel mounted design with IP64 front
  • Real-time clock, 8MB Memory with Event and alarm recording
  • Full-color graphical display with 'touch' buttons for intuitive usage
  • Multi-tariff measurement for accurate tracking
  • Various digital inputs and relay outputs for enhanced functionality
  • Harmonic analysis up to the 63rd harmonic
  • Active energy measurement compliant with EN62053-22 Class 0.2S
  • Waveform capture, waveform display, phasor diagrams, and more
  • Flexible network connections for single or three-phase (TN, TT, TI)
  • Expandable with up to four additional plug-in modules for extended functionality

Extend your PowerMap's Capabilities with Plug-in Modules:

  • AC or DC digital inputs
  • Relay outputs
  • Analog inputs (mA or PT100)
  • Analog outputs (mA)
  • Ethernet, Modbus/TCP
  • WiFi, GPRS, RS485, RS232, Mbus, BACnet, and more
